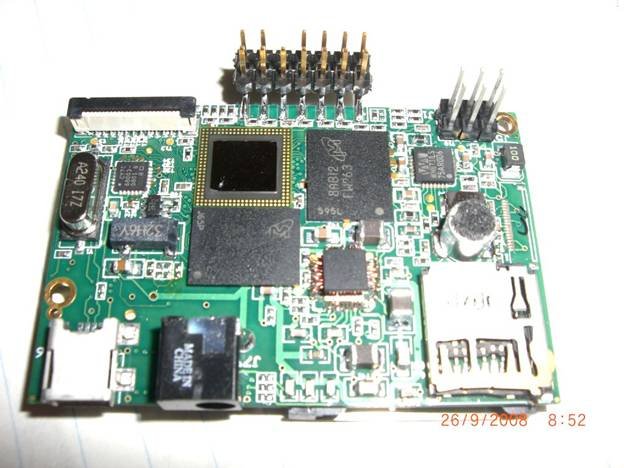

Omap3 based System                             Sep-29-2008
Yuli Kaplunovsky, yk@magniel.com  +1 408 884 5965,
Magniel Inc.  1669-2 Hollenbeck av #211, Sunnyvale, CA 94087, USA. www.magniel.com

·         Omap3530 processor from TI:  600-MHz ARM Cortex™-A8 Core, 430-MHz TMS320C64x+™ DSP Core
Best-in-class video, image, and graphics processing with 2D/3D Graphics Accelerator
More info at: http://focus.ti.com/docs/prod/folders/print/omap3530.html

·         Small dimensions: 4cm x 6cm

·         Regular wall type 5V power supplier

·         DDR SDRAM 128MByte, FLASH NAND 128Mbytes

·         Audio: onboard microphone, stereo headphone exit

·         RS-232

·         USB (slave)

·         MicroSD socket

·         SD/MMC 4.0 (8 bit) socket. Possible to use it for Wi-Fi

·         Two Video camera connectors, for 2 Mega-bit (or more) digital cameras

·         Extension socket for piggyback board with additional extensions (Ethernet, I/O, Analog Video)

·         Composite Video Output

·         CEATA connector

·         Can run Linux & WinCE

·         Bill of Material (BOM) less than $80, possible to populate less powerful DSP and less memory and reduce BOM to less than $40

Offering as a reference design, or as an operative unit, along with custom software.
